Hotspot.

Rapidly Identify Individuals with a Fever

Body Temperature Monitoring for Large Flows of Foot-Traffic

Screen Customers & Staff for Fevers

No Need to Line Up

Can scan large crowds of individuals at a distance of up to 10m as they pass through.

Quick Installation

Quick installation means you can screen for health risks sooner, keeping your customers and staff safe.

Safeguard Privacy

Can recognise individual faces, regularly purge the database history and support a variety of data collection options.

Peace of Mind

Recognise the duty of care your business has to its customers and staff by implementing measures to mitigate disease spread

Improve Workplace Health & Safety

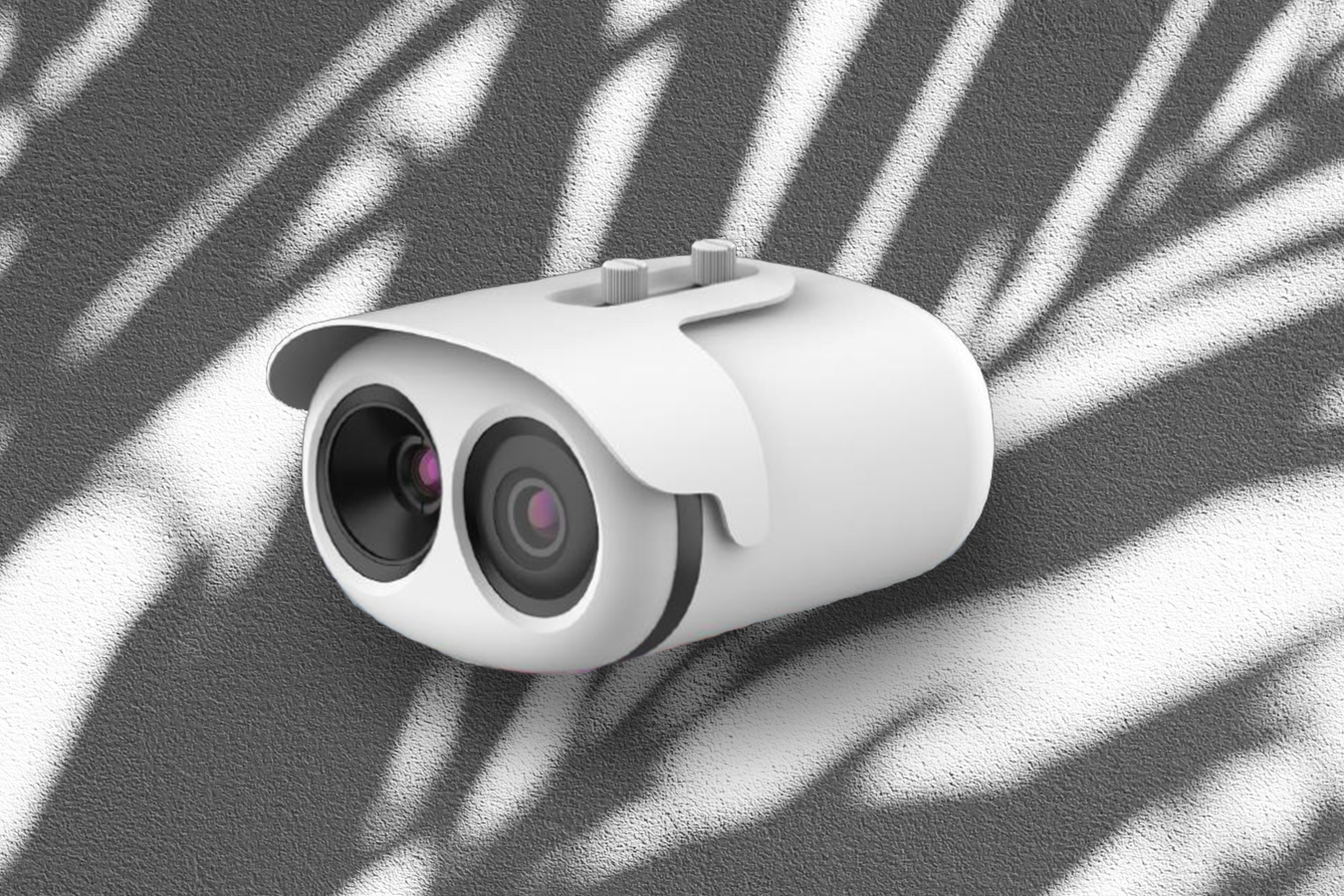

Sapio HotSpot is a fever screening device that provides methods of identifying potentially hazardous individuals in order to mitigate the risk of infection spread.

Abnormal body temperature is a key indicator of a potential health hazard. For better inspection, a temperature measurement module is introduced to facilitate the temperature detection of personnel by cooperating with the use of face detection access control in each building entrance.

With customer and government legislation becoming stronger, organisations should acknowledge they have a duty of care to protect their staff, visitors and customers. Sapio HotSpot is a crucial piece of technology capable of assisting with that.

Improve Workplace Health & Safety

Sapio HotSpot is a fever screening device that provides methods of identifying potentially hazardous individuals in order to mitigate the risk of infection spread.

Abnormal body temperature is a key indicator of a potential health hazard. For better inspection, a temperature measurement module is introduced to facilitate the temperature detection of personnel by cooperating with the use of face detection access control in each building entrance.

With customer and government legislation becoming stronger, organisations should acknowledge they have a duty of care to protect their staff, visitors and customers. Sapio HotSpot is a crucial piece of technology capable of assisting with that.

Technical Information

General Unit Information

Specifications on the Body Temperature Monitoring Camera Unit.

Power Supply

DC12V/POE (IEEE 802.3af)

Power Consumption

Max 10W

Operating Temperature

-30°C~60°C

Storage Conditions

0~ 90% RH

Certifications

CE /FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

212×182×136mm

Net Weight

2Kg

Thermal Camera & Lens Information

In-Depth Specifications.

Detector Type Uncooled IRFPA Microbolometer

Effective Pixels 400(H) ×300(V)

Pixel Size

17um

Thermal Sensitivity (NETD)

40mK @F1.0, 300K

Spectral Range

8~14um

Image Setting

Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR
Brightness/Contrast/ ROI

Color Palettes

Black-Heat /White-Heat/Rainbow/Iron-Red up to 17
Modes

Thermal Lens

Lens Type Fixed

Focus Control

Manual Focus

Focal Length

8mm

F No.

F1.0

Angle of View

H: 46°, V:35.3°
