Neo.

Identify & Screen Individuals with a Fever

Deny Entry & Mitigate Risk

Visitor Management Re-Envisioned

Manage Effectively

Record and manage visitors to your site efficiently and effectively with peace of mind that visitors are health screened without mass exposing staff members.

Easily Integrated

Build health screening into your existing access control system for seamless personnel management.

Efficient

Can recognize a face and measure temperature within 2s allowing continuous movement and flow through entry points.

Stop Health Threats

Temperatures are measured rapidly and entry onto site will be stopped, preventing anyone with a high temperature (a common symptom of COVID-19 and a number of other flus and viruses).

Manage Your Return to Business

Workplaces can now identify and manage return to work plans by deploying a multitude of health and safety measures to help give team members and employers peace of mind.

Businesses can mitigate the risk of illness in their premise by identifying individuals with high temperatures and stop them at the door prior to entering your office space.

Procedures such as these are considered key by Safe Work Australia in order to assist businesses getting back to normal and ensure that employers are doing all they can to safeguard their workforce from the spread of viruses such as the cold and flu which cost Australian business collectively billions of dollars a year.

Manage Your Return to Business

Workplaces can now identify and manage return to work plans by deploying a multitude of health and safety measures to help give team members and employers peace of mind.

Businesses can mitigate the risk of illness in their premise by identifying individuals with high temperatures and stop them at the door prior to entering your office space.

Procedures such as these are considered key by Safe Work Australia in order to assist businesses getting back to normal and ensure that employers are doing all they can to safeguard their workforce from the spread of viruses such as the cold and flu which cost Australian business collectively billions of dollars a year.

Technical Information

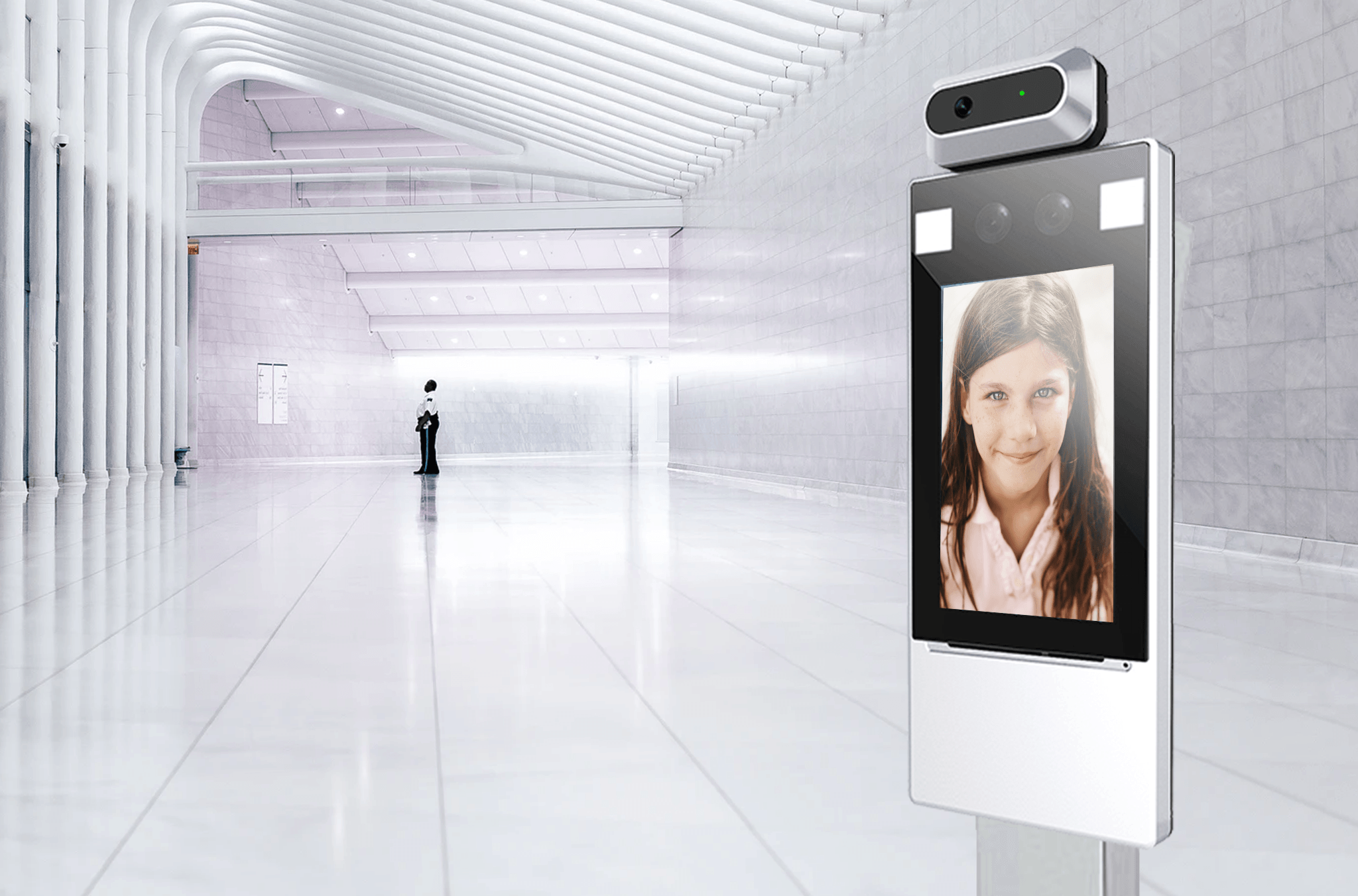

Neo Unit

Temperature Monitoring & Access Control

Operating System:

Linux

Face Recognition Accuracy Rate:

>99%

Face Recognition Time:

200ms

Face Capacity:

10,000

Card Capacity:

100,000

Storage Capacity:

4GB

Event Capacity:

30,000 (with images)

Measurement Range:

30℃ – 45℃

Measurement Accuracy:

0.1℃

Measurement Deviation:

≤±0.5℃

Measurement Distance:

1cm-2.5cm

Authentication Mode:

Face Whitelist∶  (1∶ N)

Card: (1:N)

Face +Body temperature

Door Opening Method:

Face, Password, QR code, Card

Communication Mode:

10/100Mbps Adaptive Network Port

Card Type:

Mifare 1 Card

User Management Support:

User Library Addition, Deletion, Update

Record Management Support:

Local Recording & Real-Time Upload

Interface:

LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1,

Lock×1, Door Contact ×1, Exit Button×1

Lock Output:

12VDC 1AMP

Power Supply Input:

12V±25% DC

Touch Screen:

Size 7 inch

Resolution 600×1024

Camera Dual Lens

2MP, 1080P

Supplement Light LED Soft Light and Infrared Light

Terminal Dimensions (WxHxD):

134.0mm×33.0mm×305.0mm

Working Environment for Terminal:

−20℃~ +65℃, Relative Humidly<95% (Non-Condensing)

Protection Level Both Terminal & Module:

IP54

Mounting Bracket

Stability, Support, Positioning

Material:

Sheet Metal

Weight:

6.85KG

Dimensions (L×W×H):

280mm×222mm×1158mm

Protection Level:

IP54

Application Situation:

Outdoor, Indoor
